Hello,
I am trying to run global CLM run with my own atmospheric forcings.
I am getting dt limit error, which I am not sure how to solve it.
Here are the details of my problem.
=======
- CESM version: cesm2.2.0-0-g332937b
=======
- My forcing file info:
spatial resolution: 0.5 (lat) x 0.625 (lon)
time unit: minutes since 2001-01-01 06:00:00 (for year 2001)
data: 6-hourly atm. data (precipitation, incoming solar, pressure, specific humidity, air temperature, wind speed)
=======
- Steps I have done so far
1) created the domain of 0.5x0.625 resolution with following steps (domain info attached: newdomaininfo.zip)
=> SCRIP grid file creation with mkscripgrid.ncl
=> map file creation with 'gen_cesm_maps.sh'
./gen_cesm_maps.sh --fileatm ~/CESM2/components/clm/tools/mkmapgrids/SCRIPGrid_geos_s2s_0.5x0.625.nc --fileocn ~/CESM2/components/clm/tools/mkmapgrids/SCRIPGrid_geos_s2s_0.5x0.625.nc --nameatm geos_s2s_0.5x0.625 --nameocn geos_s2s_0.5x0.625 --typeatm global --typeocn global --serial -rc
=> domain file creation with 'gen_domain'
./gen_domain -m /home/hannahoh407/CESM2/cime/tools/mapping/gen_mapping_files/map_geos_s2s_0.5x0.625_TO_geos_s2s_0.5x0.625_aave.241016.nc -o navy -l 0.5x0.625
2) case setup
=> compset: 2000_DATM%CRUv7_CLM50%BGC_SICE_SOCN_SROF_SGLC_SWAV
=> xmlchange
./xmlchange DATM_MODE=CLMCRUNCEPv7
./xmlchange DATM_CLMNCEP_YR_START=$YRSTART
./xmlchange DATM_CLMNCEP_YR_END=$YREND
./xmlchange DATM_CLMNCEP_YR_ALIGN=1
./xmlchange STOP_OPTION=nmonths
./xmlchange STOP_N=3
./xmlchange RUN_STARTDATE=2001-01-01
./xmlchange DIN_LOC_ROOT_CLMFORC="/data2/hannah/BC_forecast_jan01_M2/2001/jan01/ens1"
./xmlchange ATM_DOMAIN_PATH=$DIN_LOC_ROOT/share/domains/domain.clm
./xmlchange LND_DOMAIN_PATH=$DIN_LOC_ROOT/share/domains/domain.clm
./xmlchange RUN_TYPE=startup
3) write user_user_datm.streams.txt for Precip, Solar, TPQW (files attached)
=> I wrote these text files by modifying those for CRUNCEPv7.
=> I have set the offset to -10800 for Precip and TPQW since my forcing data's timestamp is aligned with solar (beginning of the time interval)
as suggested in the link: 1.2.4. Customizing the DATM namelist — ctsm release-clm5.0 documentation
4) change the timestamp of my forcing data as CRUNCEPv7. (time info attached: geos_info.txt)
=> my forcing data timestamp was in the form of 'minutes since 2001-01-01 06:00:00'. So, I changed timestamp into the form of 'days since 2001-01-01 00:00:00'.
=> I have attached the result of 'ncdump -v time 'my_atm_file.nc'' below.

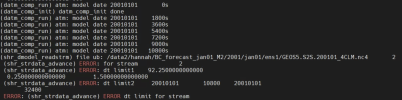

5) error message from atm.log (log files attached)
so, in my understanding, it fails to read from the first step..
=====
I would really appreciate any suggestion to this problem.
Thank you.
