Error in esmf when making CLM ground data mapping

Status
Not open for further replies.
W

weixinyu

weixinyu
Member
Hi all
To make a mapping of CLM surface data, run in the mkmapdata directory. /mkmapdata.sh -r $GRIDNAME -f $GRIDFILE -t regional
When I run the mkmapdata directory, it shows the error as shown in the picture, according to the error display, I go to the corresponding location and see that it is an error in the esmf environment variable, may I ask what should be set according to here?

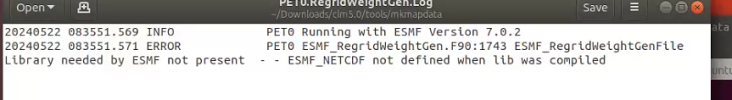

I will list the error message (Figure 1) and my own ESMF environment settings (Figure 2), please help answer!
Thank you very much!



O

oleson

Keith Oleson
CSEG and Liaisons
Staff member
I'm not sure but I think this means that your version of ESMF was not built with netcdf support. Also, version 7.0.2 may be a bit old. The last I ran this on our machine we were using 8.0.0.

W

weixinyu

weixinyu
Member
oleson said:
I'm not sure but I think this means that your version of ESMF was not built with netcdf support. Also, version 7.0.2 may be a bit old. The last I ran this on our machine we were using 8.0.0.
Click to expand...
Thank you very much for your reply!

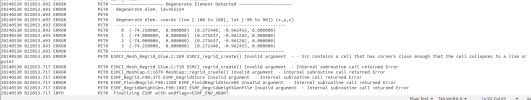

I reinstalled the new version of ESMF, so far it shows that the installation is successful, but when making map files, it only makes one map file successfully, and fails to the second one, I put the error message in the screenshot, please help me to look at it, thank you very much!
