Restart files of CESM2.1 experiments

[xiangli]

Dear all,

I'm searching for the restart files of some specific CESM2.1 experiments.

This link (CESM2 Experiments, Data & Diagnostic Output) shows the output of the listed experiments. Can we obtain the restart files of these experiments as well? Specifically, I'm looking for restart files of the historical experiments.

In addition, do we have the experiment with boundary conditions fixed at 2000 (like piControl with boundary conditions fixed at the pre-industrial)? If so, may I have the restart files of this run as well?

Thanks,
Xiang



[strandwg]

Dear all,

I'm searching for the restart files of some specific CESM2.1 experiments.

This link (CESM2 Experiments, Data & Diagnostic Output) shows the output of the listed experiments. Can we obtain the restart files of these experiments as well? Specifically, I'm looking for restart files of the historical experiments.

In addition, do we have the experiment with boundary conditions fixed at 2000 (like piControl with boundary conditions fixed at the pre-industrial)? If so, may I have the restart files of this run as well?

Thanks,
Xiang

All of the restarts from the CESM2.1 FV1 (f09_g17) resolution historical runs are available at the following Globus endpoint

Globus

The restarts from the FV1 1850 control run are at

Globus



[xiangli]

All of the restarts from the CESM2.1 FV1 (f09_g17) resolution historical runs are available at the following Globus endpoint

Globus

The restarts from the FV1 1850 control run are at

Globus

Hi Gary,

Do we have those restart files for f19_g17 and/or f19_g16 as well? Sorry that I did not mention the resolution.

Like the 1850 control run, do we have the run with forcing at Year 2000? I'm also looking for the restart files from this case.

Thanks,
Xiang



[strandwg]

Hi Gary,

Do we have those restart files for f19_g17 and/or f19_g16 as well? Sorry that I did not mention the resolution.

Like the 1850 control run, do we have the run with forcing at Year 2000? I'm also looking for the restart files from this case.

Thanks,
Xiang

The historical FV2 run restarts are at

Globus

The FV2 pre-industrial control run restarts are at

Globus

We did not run a fixed-at-2000 simulation.



[xiangli]

The historical FV2 run restarts are at

Globus

The FV2 pre-industrial control run restarts are at

Globus

We did not run a fixed-at-2000 simulation.

Hi Gary,

Thanks for providing these links!

Do I need to set the user_nl_* files if I'm going to run some simulations based on these restart files? Where can I get the user_nl_* files?

Thanks,
Xiang



[strandwg]

Hi Gary,

Thanks for providing these links!

Do I need to set the user_nl_* files if I'm going to run some simulations based on these restart files? Where can I get the user_nl_* files?

Thanks,
Xiang

Attached are the CASEROOT directories for these four FV2 runs.



[xiangli]

Attached are the CASEROOT directories for these four FV2 runs.

Hi Gary,

Thanks for sending these file to me.

For the BHIST runs, is my understanding correct that 001, 002, and 003 have slightly different initial conditions from each other?

It seems that only restart files from 001 can be found through the Globus link above. Could you please add those from 002 and 003 as well?

Thanks,
Xiang



[strandwg]

Hi Gary,

Thanks for sending these file to me.

For the BHIST runs, is my understanding correct that 001, 002, and 003 have slightly different initial conditions from each other?

It seems that only restart files from 001 can be found through the Globus link above. Could you please add those from 002 and 003 as well?

Thanks,
Xiang

Yes, 001, 002 and 003 start from different times of the 2 degree 1850 control.

Both 002 and 003 have been added to the Globus link.



[xiangli]

Yes, 001, 002 and 003 start from different times of the 2 degree 1850 control.

Both 002 and 003 have been added to the Globus link.

Thanks, Gary!



[xiangli]

Yes, 001, 002 and 003 start from different times of the 2 degree 1850 control.

Both 002 and 003 have been added to the Globus link.

Hi Gary,

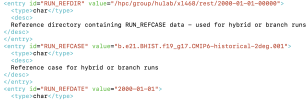

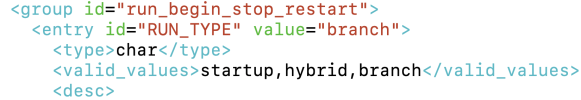

I was trying doing a branch run based on the restart files from the FV2 BHIST 001 run. Before building the case, I copied the user_nl_* files to the case directory and modified the env_run.xml as follows:

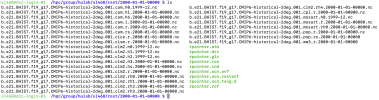

Here is where I deposit the restart files:

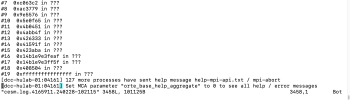

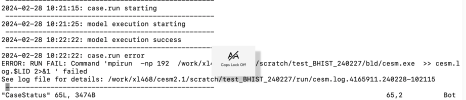

However, the case failed, with the following messages:









Any suggestions on that would be appreciated!

Thanks,
Xiang



[strandwg]

I'm not expert on running the model - a new thread on this subforum would be a good idea.



[xiangli]

I'm not expert on running the model - a new thread on this subforum would be a good idea.

Hi Gary,

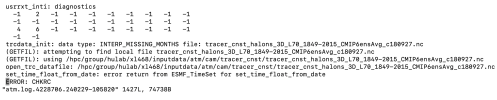

Following the reply of this thread, I checked the atm.log for detailed information:



This error has also been reported in several other threads but it seems not solved yet. Some people suggest that the input data are broken or incomplete.

Run FIST compset in CESM2.2 - error set_time_float_from_date

Greetings, I am trying to run a case using the FHIST compset. ./create_newcase --case $casename --compset FHIST --res f09_f09_mg17 And specifying the date and step tun such as: ./xmlchange RUN_STARTDATE=20100101,STOP_OPTION=ndays,STOP_N=2,DOUT_S=FALSE The case compiles but gives me this...

bb.cgd.ucar.edu

ERROR timeaddmonths(): MM out of range

Hello, I tried running CESM2.1 compset B1850 (after successfully building cesm.exe), but the run crashed with the following error in the cesm.log: ERROR timeaddmonths(): MM out of range set_time_float_from_date: error return from ESMF_TimeSet for set_time_float_from_date ERROR: CHKRC Any...

bb.cgd.ucar.edu

ERROR: CHKRC ERROR timeaddmonths(): MM out of range set_time_float_from_date: error return from ESMF_TimeSet for set_time_float_from_date

您好，我目前正在学习和使用 CESM 模式。我正在运行在大气模式下使用 2000-CM60% CCTS 的案例配置，从设置到编译都没有问题。提交时将报告错误。错误：CHKRC 错误 timeaddmonth（）： MM 超出范围 Set_ Time_ Float_ From_日期：从set_ Time_ Float_ From_日期的时间集ESMF_返回错误 我尝试了一些方法，但没有一种方法解决了此错误的问题，因此我想冒昧地寻求您的帮助。如果您熟悉这方面，希望您能帮助我回答此错误的原因以及如何解决它

bb.cgd.ucar.edu

It would be greatly appreciated if you could take a look at it.

Thanks,
Xiang



[strandwg]

Hi Gary,
[...]
It would be greatly appreciated if you could take a look at it.

Thanks,
Xiang

I can't help you with model errors. Sorry.



[xiangli]

I can't help you with model errors. Sorry.

That's alright. Thanks.



[xiangli]

I can't help you with model errors. Sorry.

Hi Gary,

When preparing the B1850 piControl case, there is a input file missing which I was not able to download using the following command:



Could you please send the data to me?

/glade/p/cesmdata/cseg/inputdata/lnd/clm2/initdata/clm50_release-clm5.0.24_2deg_CPLHST_yr480_1850pAD.clm2.r.1240-01-01-00000.nc

Thanks,
Xiang



[strandwg]

The "/glade/p/cesmdata" location no longer exists; your local version of "check_input_data" is old.

I'm not sure how that script gets updated.



[xiangli]

The "/glade/p/cesmdata" location no longer exists; your local version of "check_input_data" is old.

I'm not sure how that script gets updated.

Thanks Gary for letting me know that.

Hi Jim,

@jedwards

How shall I update my check_input_data script?

Previously I have already done this:



Looking forward to your suggestions!

Thanks,
Xiang



[jedwards]

I'm not sure where you are getting the /glade/p/cesmdata path from, the correct path is:
/glade/campaign/cesm/cesmdata



[xiangli]

I'm not sure where you are getting the /glade/p/cesmdata path from, the correct path is:
/glade/campaign/cesm/cesmdata

Hi Jim,

This is from line 23 of the user_nl_clm that Gary sent to me for restarting this simulation.



Could you please send this file to me?

Thanks,
Xiang



[jedwards]

Just edit the file and replace the incorrect paths.
